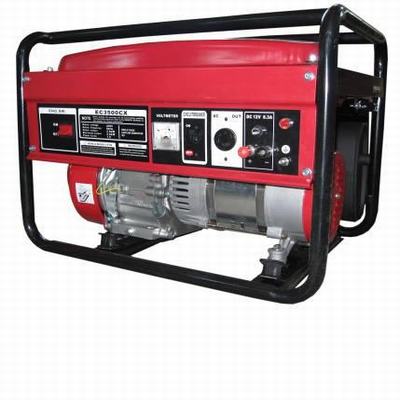

EC3600CX
Model Code型號 EC3600CX
Rated Frequency（Hz）額定頻率 50Hz
Rated Output Power(kVA) 額定輸出功率率 3
The Max. Output Power(kVA)最大輸出功率 3.3
AC Rated Voltage (V) 額定電壓 220
AC Rated Current (A) 額定電流 13.6
Phase相數 Single-phase單相
DC Output (Optional) 直流輸出（選配） 12V / 8.3A
Power Factor (cosφ) 功率因數 1.0
Engine Model Code發動機型號 RY200F
Engine type發動機類型 Single-cylinder, 4-stroke, OHV
Air-cooled Gasoline Engine單缸，四沖程，氣門頂置風冷式汽油機
Rated Output Power(kW/HP) 額定輸出功率 3.6/4.8
Rated Speed (RPM) 額定轉速 3000
Displacement (cc) 排氣量 163
Compression Ratio 壓縮率 8.5:1
Fuel燃油 Automobile Unleaded Gasoline車用無鉛汽油
Fuel tank capacity (L) 油箱容積 12
Lubrication Oil 潤滑油型號 SAE15W40 (above CC grade) （CC級以上）
Rotation Direction (View From Wheel)旋轉方向（以輪子為觀察點） Clockwise順時針
Noise Level [dB(A)/7m] 噪音/7米處
70~75
Low Oil Pressure Alarm System低油壓警示系統 With有
Structure Type結構類型 Open-frame開架式
Dimensions (L×W×H) (mm) 外形尺寸 590×430×440
Packing size (L×W×H) (mm) 包裝尺寸 605×445×460
Net weight (kg) 凈重 38
In 20" Container (sets) 裝箱數 20尺柜 230
